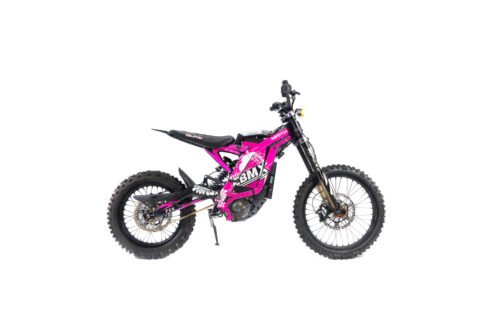

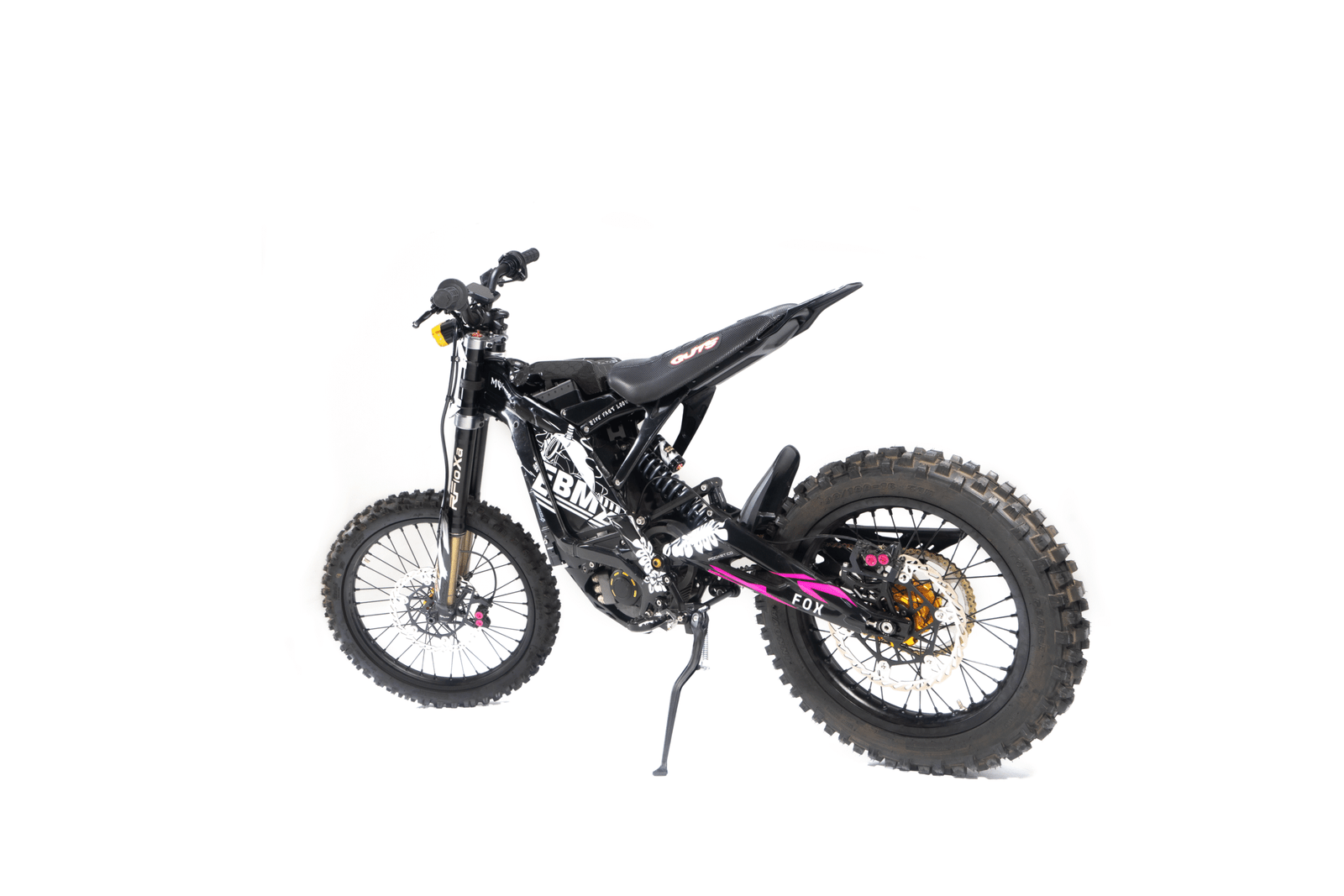

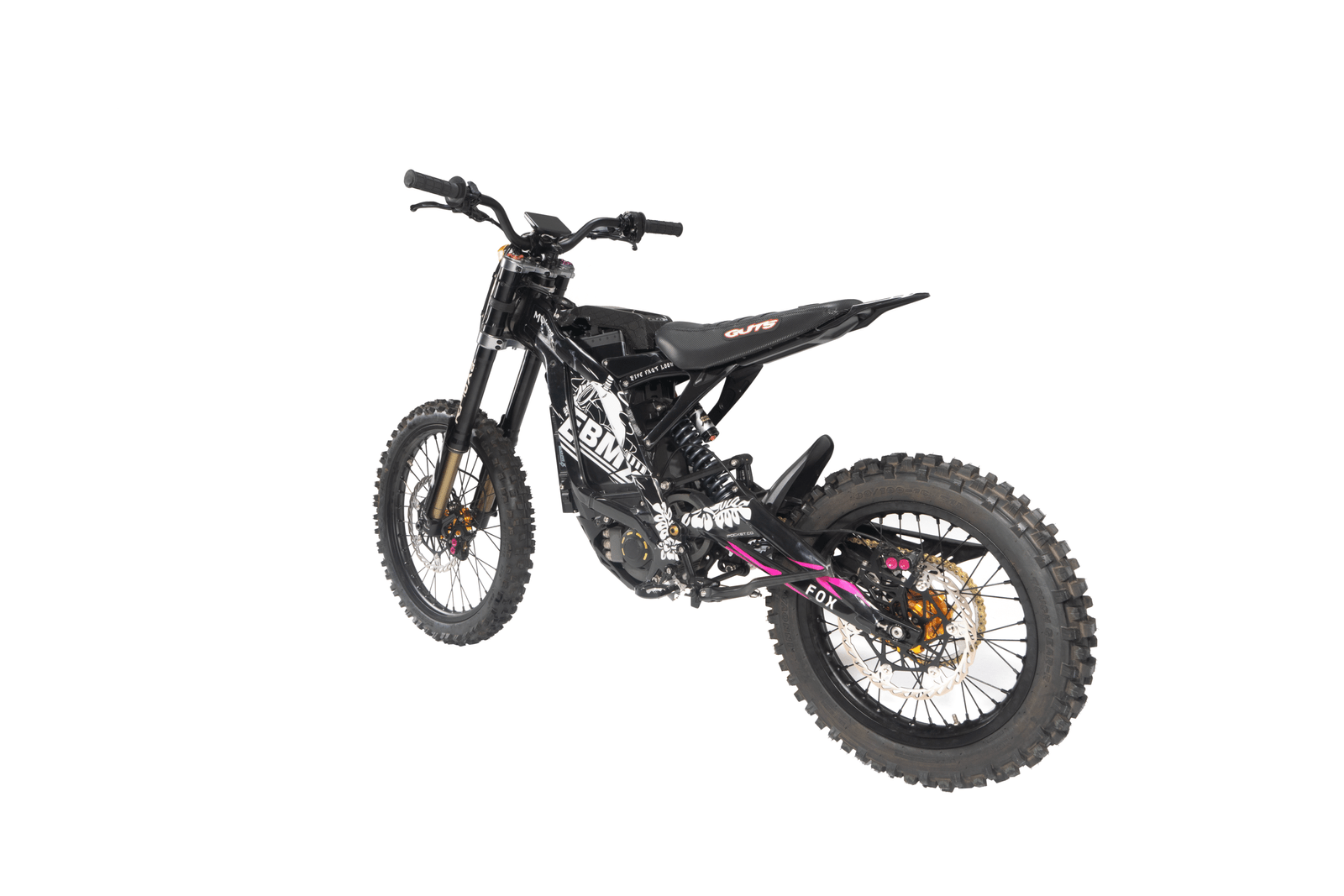

SHINETIME RAMPAGE Factory Racing Performance Model

Description

Item: SHINETIME RAMPAGE

Torque: 600N.M

Peak Power: 40,000W

WLTP Range: 98Km

Battery Voltage: 80V

Battery Capacity: 38Ah

Battery Weight: 70kg

Dimension: 1880*755*1088mm

Weight: 52kg (70 Kg with battery)

Weight Capacity: 110Kg

Ground Clearance: 275mm

Wheelbase： 1250mm

Seat Height: 830mm

Fork Suspension: 200mm

Rear Suspension: 85-290mm

Motor: EBMX XL-60 CORE Permanent Magnet Synchronous Motor

Motor Power: 40,000W

Controller: Sine wave controller

Max Speed: 130 Km/h

Moderate-range battery life: 115km (40km/h)

Battery Type: Lithium-ion battery

Charging Time: 4.2h

Frame: Aluminum alloy

Gear: Multi-speed internal hub allows  3 and 5 speeds

Cassette：FR.: 70/100-19; RR.: 90/100-16

EBMX XL-60 CORE Proprietary Mid-Mounted Motor

Peak Power:40,000W
Technical Features:High-precision, heat-resistant bearings ensure greater stability and reduced noise at high speeds.
Design Optimization:Lightweight multi-hole design increases power output by 60% compared to similar-weight models, delivering unmatched performance.

High-Performance Battery System

Battery Brand:Powered by advanced Samsung 50S cells.
Performance Benefits:Delivers extended range, explosive power, and energy-efficient riding.
Eco-Friendly Design:Enables seamless navigation across diverse terrains while minimizing environmental impact.

EBMX Advanced Vector Control System

Core Features:Dynamic high-speed response, low-frequency torque amplification, and flexible, precise control.
High Adaptability: Quickly responds to various challenging terrains, ensuring superior handling and control.
Industry Leading Technologies:Experience unparalleled control with the EBMX modified VESC-based motor control and firmware. Our custom app comes equipped with pre-configured motor tunes, making it easier to optimize your ride.
Ultimate Freedom and Control;Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction

Durable, Lightweight Frame Design

Material:Crafted from 6061-6 series aluminum alloy using a 6,000-ton forging process.
Welding Process:Strictly engineered for durability and aesthetics.

Custom Suspension System

Collaboration:Co-developed with Rfloxa for a bespoke suspension system.
Performance Advantage:Exceptional shock absorption effectively cushions uneven surfaces.
Applications:Ensures a safe and comfortable riding experience, whether on rugged mountain trails or bumpy urban roads.
