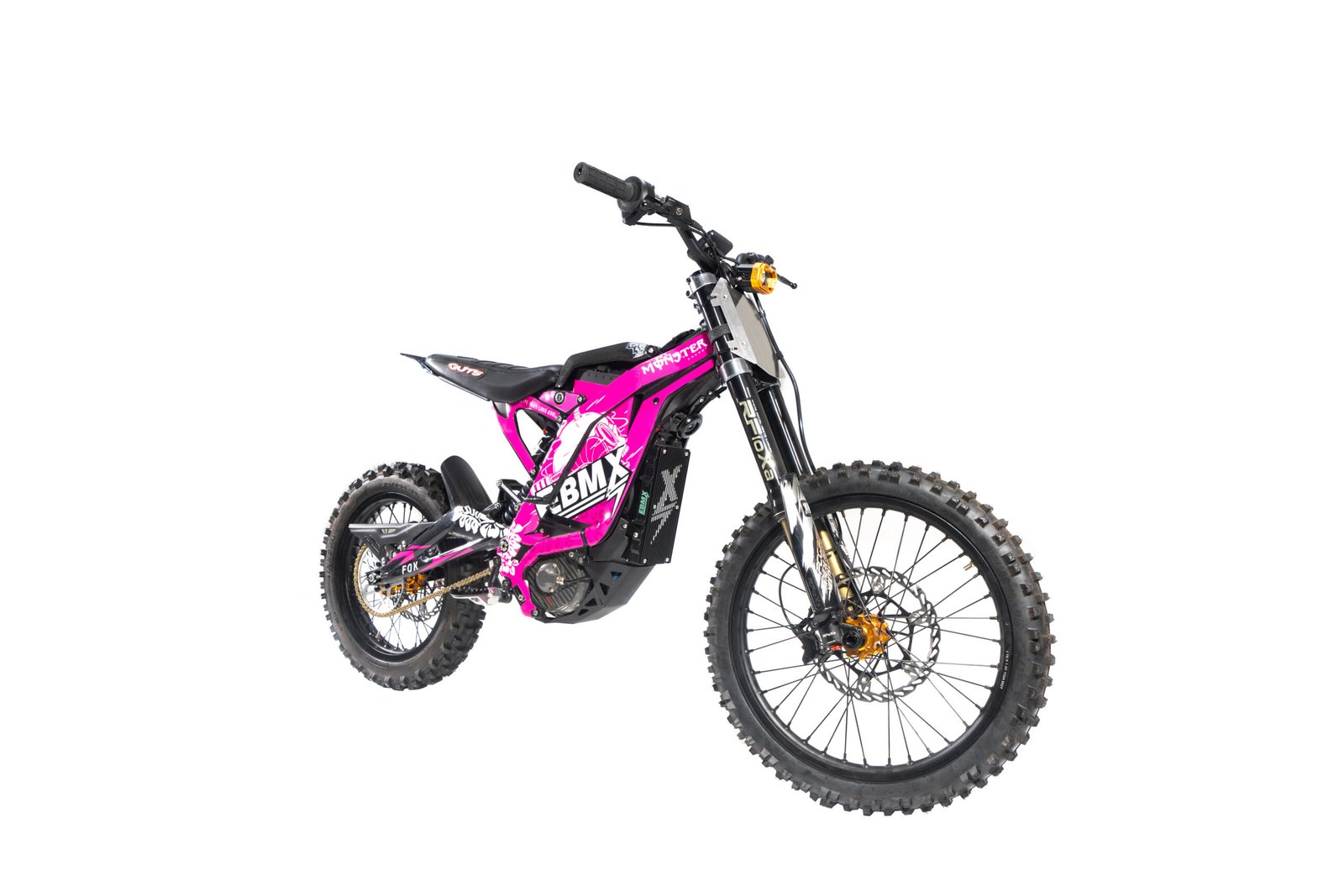

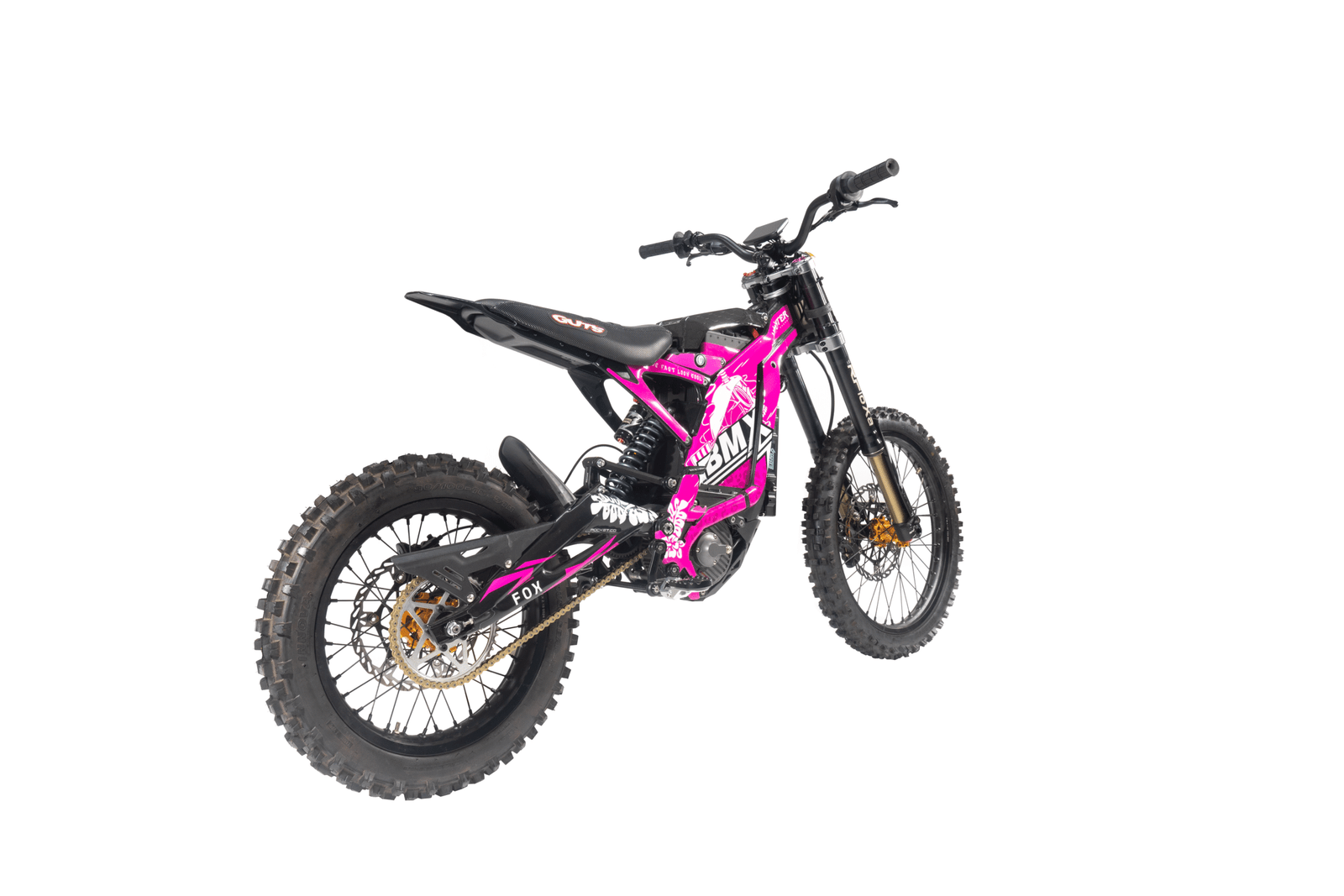

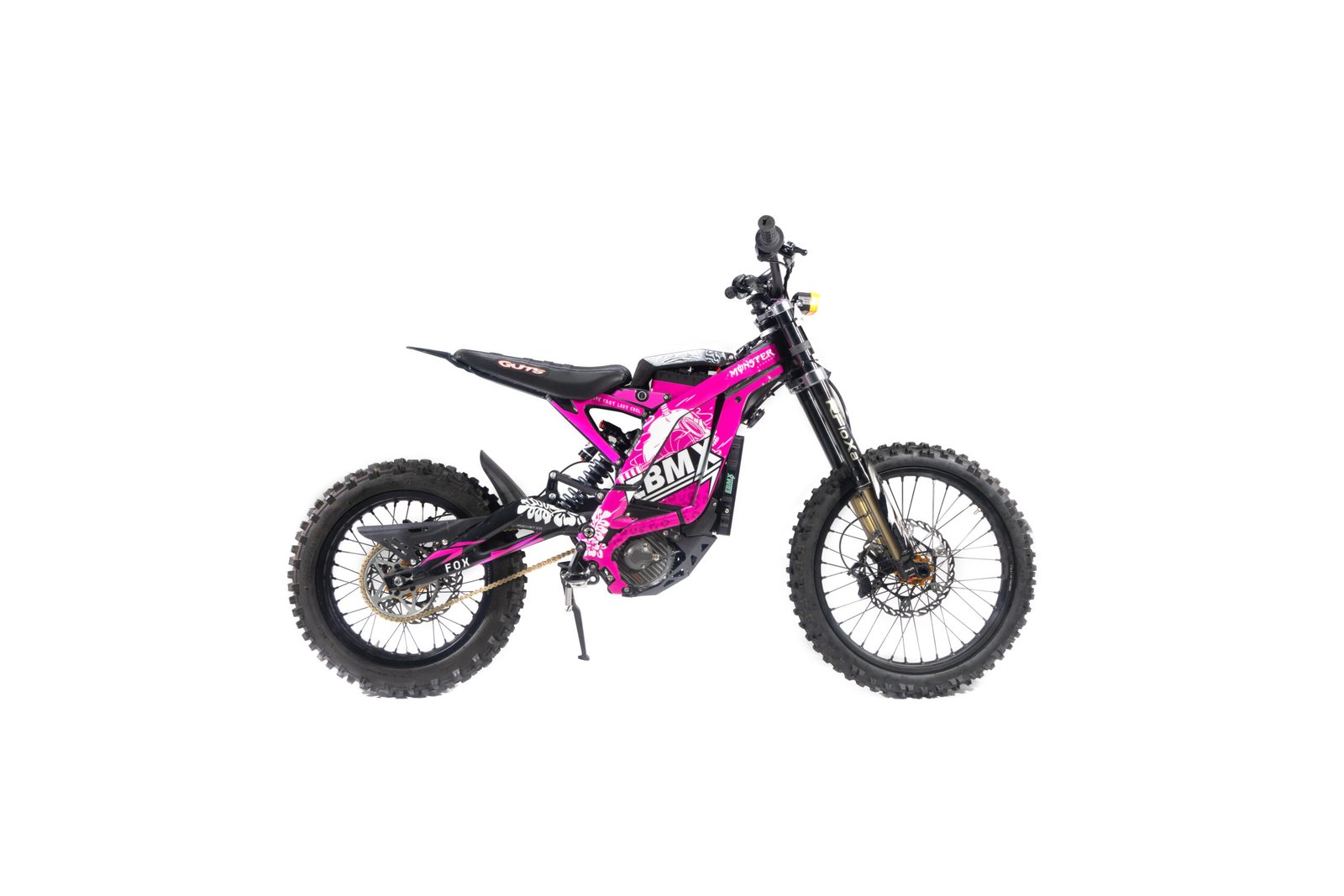

SHINETIME WARFAE All-Terrain Off-Road Model

Description

Item: SHINETIME WARFAE

Torque: 390N.M

Peak Power: 20,000W

WLTP Range: 115Km

Battery Voltage: 72V

Battery Capacity: 45Ah

Battery Weight: 69kg

Dimension: 1880*755*1088mm

Weight: 51.2kg (69 Kg with battery)

Weight Capacity: 110Kg

Ground Clearance: 275mm

Wheelbase： 1250mm

Seat Height: 830mm

Fork Suspension: 200mm

Rear Suspension: 85-290mm

Motor: Permanent Magnet Synchronous Motor (PMSM)

Motor Power: 20,000W

Controller: Sine wave controller

Max Speed: 100 Km/h

Moderate-range battery life: 115km (40km/h)

Battery Type: Lithium-ion battery

Charging Time: 4.2h

Frame: Aluminum alloy

Gear: Multi-speed internal hub allows  3 and 5 speeds

Cassette：FR.: 70/100-19; RR.: 90/100-16

 Proprietary Mid-Mounted Motor

• Peak Power:20,000W
• Technical Features:High-precision, heat-resistant bearings ensure greater stability and reduced noise at high speeds.
• Design Optimization:Lightweight multi-hole design increases power output by 20% compared to similar-weight models, delivering unmatched performance.

High-Performance Battery System

• Battery Brand:Powered by advanced Samsung 50S cells.
• Performance Benefits:Delivers extended range, explosive power, and energy-efficient riding.
• Eco-Friendly Design:Enables seamless navigation across diverse terrains while minimizing environmental impact.

EBMX Advanced Vector Control System

• Core Features:Dynamic high-speed response, low-frequency torque amplification, and flexible, precise control.
• High Adaptability: Quickly responds to various challenging terrains, ensuring superior handling and control.
• Industry Leading Technologies:Experience unparalleled control with the EBMX modified VESC-based motor control and firmware. Our custom app comes equipped with pre-configured motor tunes, making it easier to optimize your ride.
• Ultimate Freedom and Control;Using components sourced from reputable suppliers, each item has been engineered for peak performance, from the CNC machined internals and bus bars, injection molded cover to the fully waterproof construction

Durable, Lightweight Frame Design

• Material:Crafted from 6061-6 series aluminum alloy using a 6,000-ton forging process.
• Welding Process:Strictly engineered for durability and aesthetics.

Custom Suspension System

• Collaboration:Co-developed with Rfloxa for a bespoke suspension system.
• Performance Advantage:Exceptional shock absorption effectively cushions uneven surfaces.
• Applications:Ensures a safe and comfortable riding experience, whether on rugged mountain trails or bumpy urban roads.
